squid_redir

Abstract

squid_redir is a program for rewriting URLs. It is used in conjunction with the Squid proxy and the PostgreSQL database. You can setup multiple redirections, for example one could say that any requests to http://www.a-really-bad-site.com goes to http://www.the-good-guys-site.org without any reconfiguration of your browsers or your proxy server.

Prerequisites

First of all, you need to have a working setup of the Squid proxy and the PostgreSQL database. For security reasons, you should create a new database user and grant this user access to a new database, exclusively.

Download

squid_redir.tar.bz2

Compile

$ tar -xyf squid_redir.tar.bz2
$ make CFLAGS=-I<path-to-postgresql-header> LDFLAGS=-L<path-to-postgresql-libraries>

Installation

By default, the following directories will be used:

directory Makefile parameter what's installed there description
/usr/sbin SBINDIR squid_redir main program, will be invoked by squid
/home/www WWWDIR nothing document root of your webserver
$(WWWDIR)/cgi-bin CGIBINDIR squid_redir_error used by squid_redir for displaying errors and for redirecting
$(CGIBINDIR)/admin CGISBINDIR squid_redir_conf configuration utility (CGI script)
$(WWWDIR)/htdocs/squid_redir HTDOCSDIR back.html
deny.html
reject.html
/etc/squid SYSCONFDIR squid_redir.conf configuration file, which contains database connection parameters (if you change its location, you have to edit defs.h in the source directory, too)
  DESTDIR nothing a placeholder for packaging

Configuration

Edit /etc/squid/squid_redir.conf (or wherever you put the configuration file) and put in the following lines:

user = <database user you created above>
pass = <password for this user>
db = <name of the database>
error_url = http://<yourwebserver>/cgi-bin/squid_redir_error

That's it! Any tables will be created by squid_redir itself.

Howto

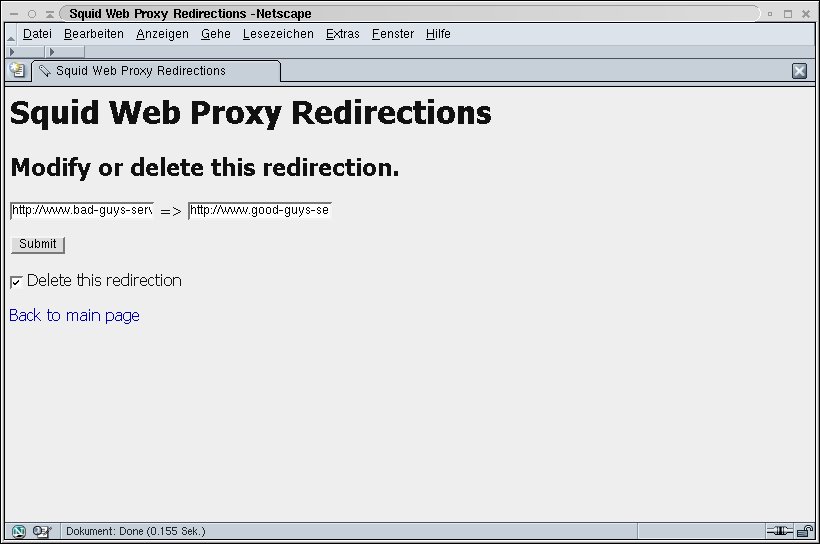

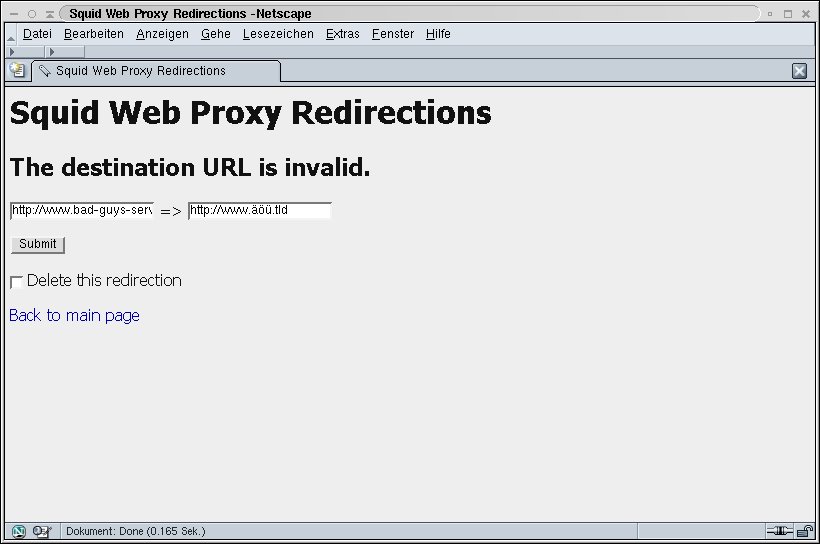

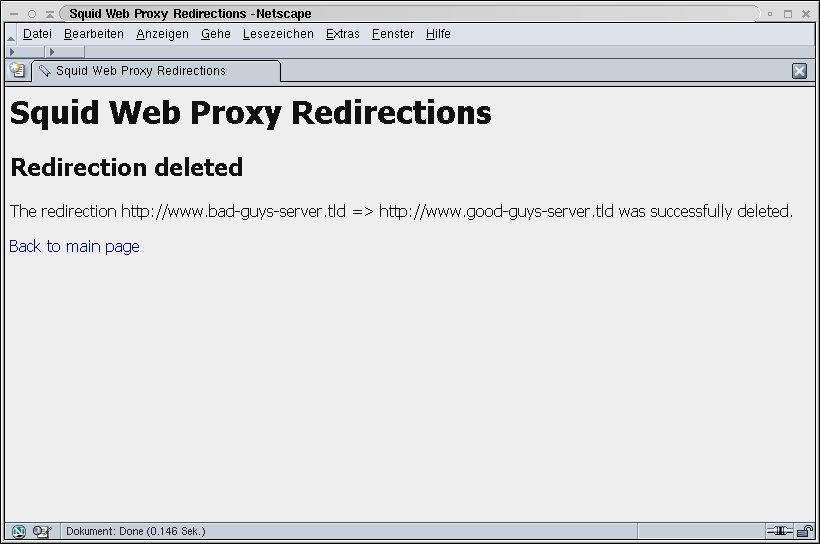

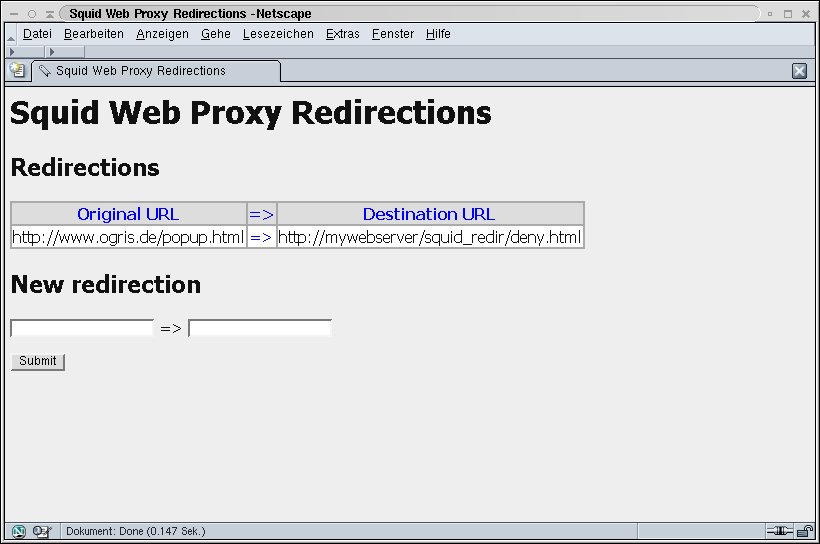

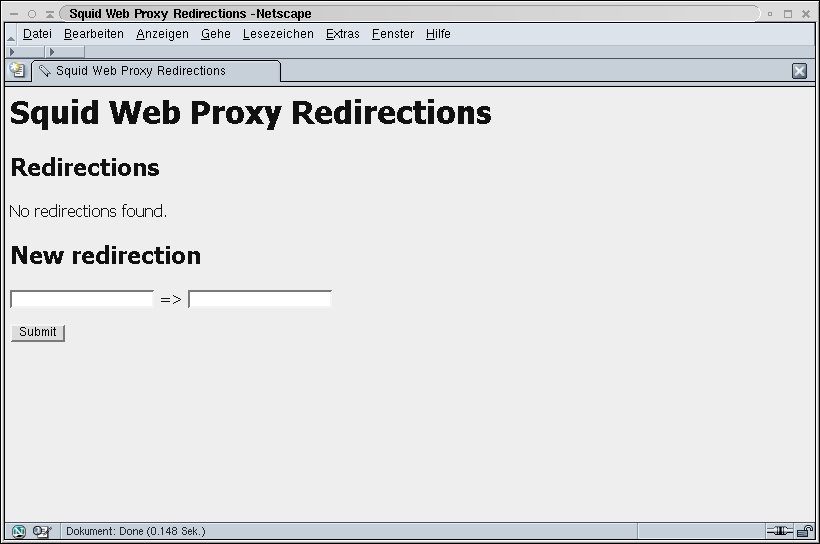

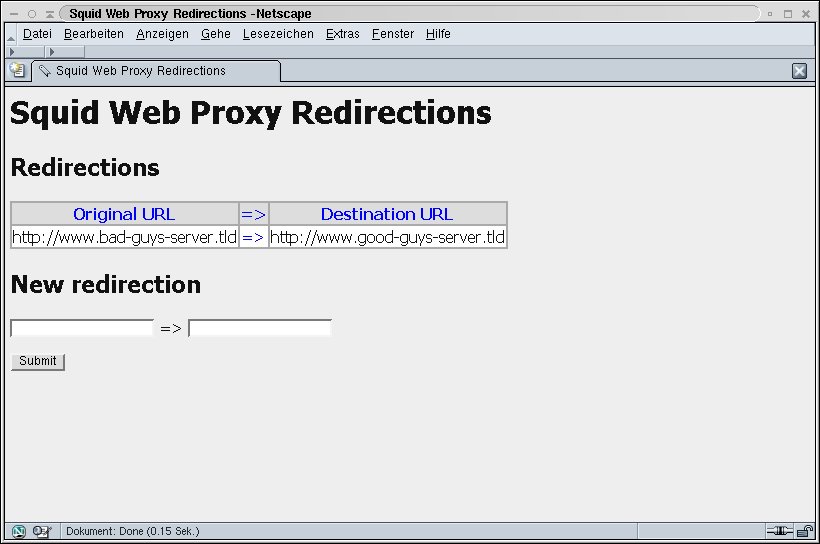

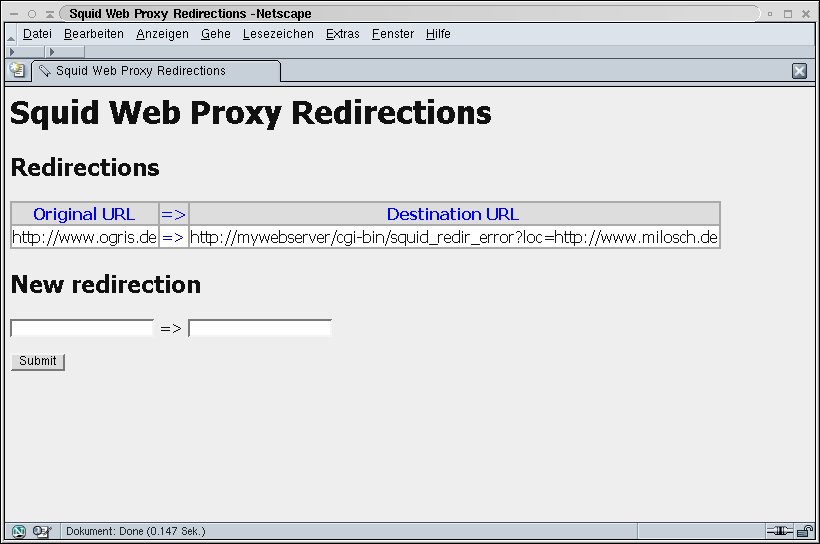

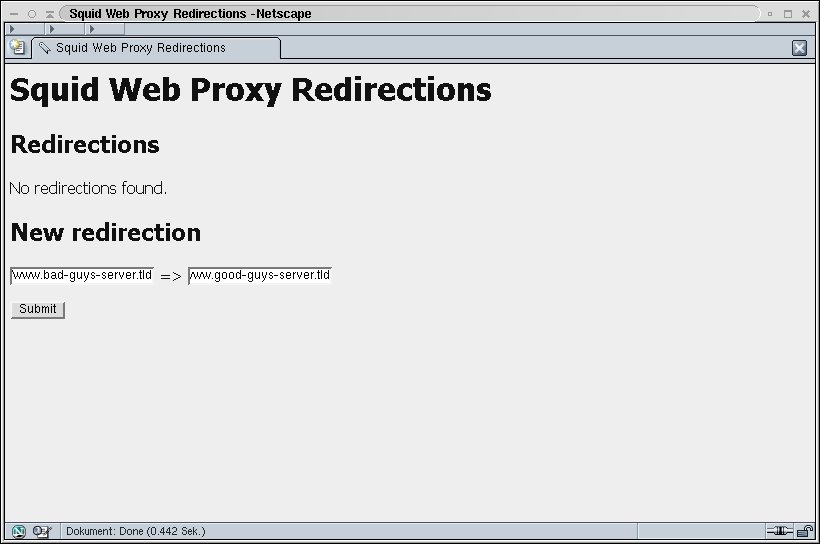

Basically, you just have to open http://<yourwebserver>/cgi-bin/squid_redir_error with your web browser. Although the interface is easily to understand, I have some screenshots which show you what can be done with squid_redir_conf:

FAQ

There are no FAQs yet!
