Unbound on FreeBSD 15

I switched from BIND 9.20 as caching DNS resolver on my home-made router to Unbound 1.24.1, which comes bundled with FreeBSD 15. Main reason was memory stability.

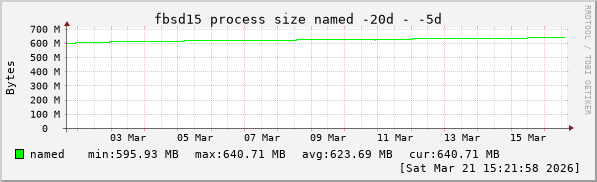

BIND seemed to consume memory increasingly related to the number of DNS queries:

In contrast, Unbound even returns some memory to the operating system:

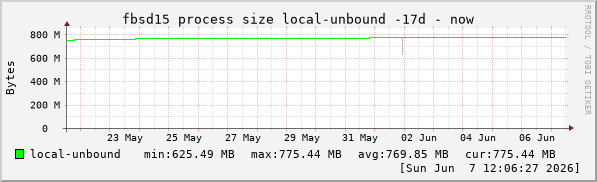

Added 2026-06-07: Memory usage since last system boot 17 days ago:

The absolute numbers are not comparable, because:

BIND was configured to download copies of the root, .arpa, .in-addr.arpa, and .ip6.arpa zones via AXFR regularly, while Unbound only uses built-in root nameservers
BIND was explicitly configured with:
- 3 local primary DNS zones for localhost and reverse localhost entries
- 2 local primary DNS zones to overwrite BIND specific version info in the Chaos class
- 166 local, empty primary DNS zones to ground DNS entries specified by RFCs 1912, 2544, 3879, 4159, 4193, 4291, 5735, 5736, 5737, 6303, and 6598.
Unbound is fed 1.24 million CNAME records from a RPZ zone file of 36 megs, while BIND used a 18 megs zone file containing 682000 records.

Updated 2026-06-07:

Unbound is fed 1.13 million CNAME records from a RPZ zone file of 32 MB.
I configured Unbound to keep und to update local copies of the root and .arpa zones regularly.
I noticed that the actual process size of Unbound configured as pure resolver, i.e. without any auth zones nor rpz's, is about 2 to 2.5 times the combined values of rrset-cache-size and msg-cache-size. Thus, I lowered both settings. See below.

Configuration

I ran /usr/sbin/local-unbound, but modified /var/unbound/unbound.conf just with its official documentation at hand:

server:
	username: unbound
	directory: /var/unbound
	chroot: /var/unbound
	pidfile: /var/run/local_unbound.pid
	auto-trust-anchor-file: /var/unbound/root.key
	so-sndbuf: 0

	module-config: "respip iterator"

	interface-automatic: yes
	access-control: 127.0.0.0/8 allow
	access-control: 192.168.0.0/16 allow

	use-syslog: yes
	log-local-actions: yes
	log-servfail: yes

	prefetch: yes
	num-threads: 4
	outgoing-range: 175

#	rrset-cache-size: 256m
#	msg-cache-size: 128m
# Updated 2026-06-07: Actual process size is 2 to 2.5 times of rrset+msg-cache-size
	rrset-cache-size: 64m
	msg-cache-size: 32m

	statistics-interval: 0
	extended-statistics: yes
	statistics-cumulative: yes

	local-zone: 168.192.in-addr.arpa transparent

rpz:
	name: ...
	zonefile: ...

auth-zone:
	name: ...
	zonefile: ...

auth-zone:
	name: 168.192.in-addr.arpa
	zonefile: primary/168.192.in-addr.arpa

include: /var/unbound/control.conf

# Added 2026-06-07: keep and update local copies of the root and .arpa zones
auth-zone:
	name: .
	zonefile: secondary/root
	for-downstream: no
	fallback-enabled: yes
	# A.ROOT-SERVERS.NET.
	primary: 198.41.0.4
	# A.ROOT-SERVERS.NET.
	primary: 2001:503:BA3E::2:30
	# B.ROOT-SERVERS.NET.
	primary: 192.228.79.201
	# C.ROOT-SERVERS.NET.
	primary: 192.33.4.12
	# D.ROOT-SERVERS.NET.
	primary: 128.8.10.90
	# E.ROOT-SERVERS.NET.
	primary: 192.203.230.10
	# F.ROOT-SERVERS.NET.
	primary: 192.5.5.241
	# F.ROOT-SERVERS.NET.
	primary: 2001:500:2F::F
	# G.ROOT-SERVERS.NET.
	primary: 192.112.36.4
	# H.ROOT-SERVERS.NET.
	primary: 128.63.2.53
	# H.ROOT-SERVERS.NET.
	primary: 2001:500:1::803F:235
	# I.ROOT-SERVERS.NET.
	primary: 192.36.148.17
	# I.ROOT-SERVERS.NET.
	primary: 2001:7FE::53
	# J.ROOT-SERVERS.NET.
	primary: 192.58.128.30
	# J.ROOT-SERVERS.NET.
	primary: 2001:503:C27::2:30
	# K.ROOT-SERVERS.NET.
	primary: 193.0.14.129
	# K.ROOT-SERVERS.NET.
	primary: 2001:7FD::1
	# L.ROOT-SERVERS.NET.
	primary: 199.7.83.42
	# L.ROOT-SERVERS.NET.
	primary: 2001:500:3::42
	# M.ROOT-SERVERS.NET.
	primary: 202.12.27.33
	# M.ROOT-SERVERS.NET.
	primary: 2001:DC3::35

auth-zone:
	name: arpa
	zonefile: secondary/arpa
	for-downstream: no
	fallback-enabled: yes
	# A.ROOT-SERVERS.NET.
	primary: 198.41.0.4
	# A.ROOT-SERVERS.NET.
	primary: 2001:503:BA3E::2:30
	# B.ROOT-SERVERS.NET.
	primary: 192.228.79.201
	# C.ROOT-SERVERS.NET.
	primary: 192.33.4.12
	# D.ROOT-SERVERS.NET.
	primary: 128.8.10.90
	# E.ROOT-SERVERS.NET.
	primary: 192.203.230.10
	# F.ROOT-SERVERS.NET.
	primary: 192.5.5.241
	# F.ROOT-SERVERS.NET.
	primary: 2001:500:2F::F
	# G.ROOT-SERVERS.NET.
	primary: 192.112.36.4
	# H.ROOT-SERVERS.NET.
	primary: 128.63.2.53
	# H.ROOT-SERVERS.NET.
	primary: 2001:500:1::803F:235
	# I.ROOT-SERVERS.NET.
	primary: 192.36.148.17
	# I.ROOT-SERVERS.NET.
	primary: 2001:7FE::53
	# J.ROOT-SERVERS.NET.
	primary: 192.58.128.30
	# J.ROOT-SERVERS.NET.
	primary: 2001:503:C27::2:30
	# K.ROOT-SERVERS.NET.
	primary: 193.0.14.129
	# K.ROOT-SERVERS.NET.
	primary: 2001:7FD::1
	# L.ROOT-SERVERS.NET.
	primary: 199.7.83.42
	# L.ROOT-SERVERS.NET.
	primary: 2001:500:3::42
	# M.ROOT-SERVERS.NET.
	primary: 202.12.27.33
	# M.ROOT-SERVERS.NET.
	primary: 2001:DC3::35

Then I shutdown BIND and started Unbound:

# service named stop
# sysrc named_enable=NO
# sysrc local_unbound_enable=YES
# service local_unbound start
